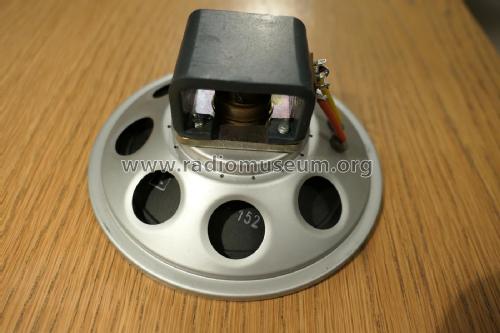

Rund-Lautsprecherchassis P 16/19/8
Isophon, E. Fritz & Co. GmbH.; Berlin
- Country
- Germany
- Manufacturer / Brand
- Isophon, E. Fritz & Co. GmbH.; Berlin
- Year
- 1959
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 286416
-
- Brand: Isophon
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 3 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Rund-Lautsprecherchassis P 16/19/8 - Isophon, E. Fritz & Co. GmbH.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 160 x 74 x 160 mm / 6.3 x 2.9 x 6.3 inch
- Notes
-
Frequenzbereich: 80-10.000 Hz
Impedanz: 4 Ohm
magn. Induktion (Gauß): 8000
magn. Fluß (Maxwell): 25.000
Eigenresonanz Hz +/- 10: 110
- Net weight (2.2 lb = 1 kg)
- 0.530 kg / 1 lb 2.7 oz (1.167 lb)
- Price in first year of sale
- 17.00 DM
- Mentioned in
- -- Original prospect or advert (Isophon Handelsprogramm von 1959)
- Author
- Model page created by Ralf Meinke. See "Data change" for further contributors.
