• Country
• Germany

• Manufacturer / Brand
• ITC (Marke)

• Year
• 1983 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207345

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.85 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

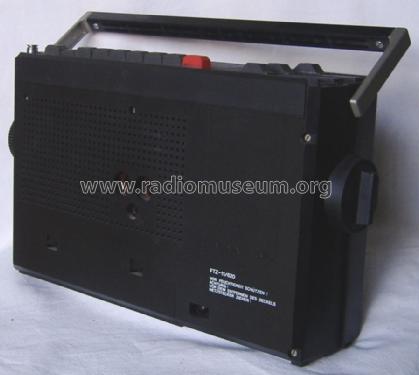

• Model: Sabina R610 - ITC Marke

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 288 x 176 x 76 mm / 11.3 x 6.9 x 3 inch

• Notes
• Exportversion des Unitra Eltra Sabina R610 für die BRD.
  UKW 88-108MHz
  LW 165-285kHz
  MW 525-1605kHz
  7x KW:
  49m 5,95-6,2MHz
  41m 7,1-7,3MHz
  31m 9,5-9,775MHz
  25m 11,7-11,975MHz
  19m 15,1-15,45MHz
  16m 17,7-17,9MHz
  13m 21,45-21,75MHz
  Gehäuse in durchgehend schwarzer Farbe.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
