Stereo 7700 HiFi Compact

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1977–1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124485

• Picture

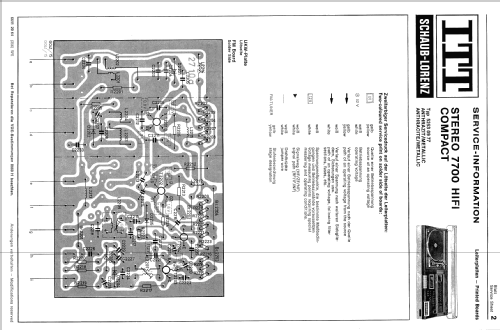

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 57

• Semiconductors
• MC1310 TCA730 TCA740 TCA740 UAA170 UAA180 UAA180 UAA180 CD4511 SN76131 SAA1130 TDB1030 CD4011 CD4011 CD4001 CD4029 SAA1024 ZTK33 µA7815 BD607 BD607 BD607 BD607

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (100 W max.)

• from Radiomuseum.org
• Model: Stereo 7700 HiFi Compact - ITT Schaub-Lorenz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 786 x 172 x 356 mm / 30.9 x 6.8 x 14 inch

• Notes

• ITT Schaub-Lorenz HiFi-Stereo-3er-Kompaktanlage Modell Stereo 7700 hifi compact.
  Herausnehmbare Fernbedienungs-Cassette zur drahtlosen Ultraschall-Steuerung
  2x 30 Watt Sinusleistung, 2x 50 Watt Musikleistung
  3 Wellenbereiche, 7 UKW-Stationstasten
  Leuchtdioden-Display
  HiFi-Plattenspieler Dual 481 Belt Drive mit SHURE-Magntsystm M 95 G-LM
  Toploading Cassetten Player/Recorder mit automatischer Bandsorten-Umschaltung und DLPF-Rauschunterdrückung
  Staubschutzhaube

  Gehäuse Anthrazit/Metallic

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Source of data
• Handbuch VDRG 1977/1978
