• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1979–1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276688

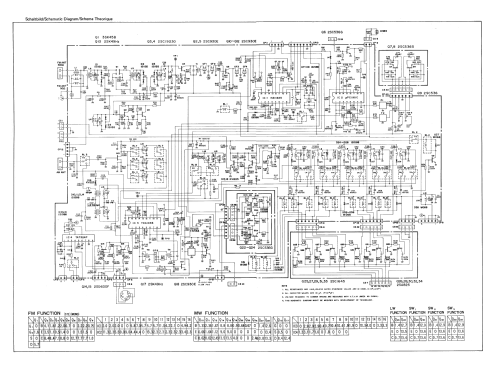

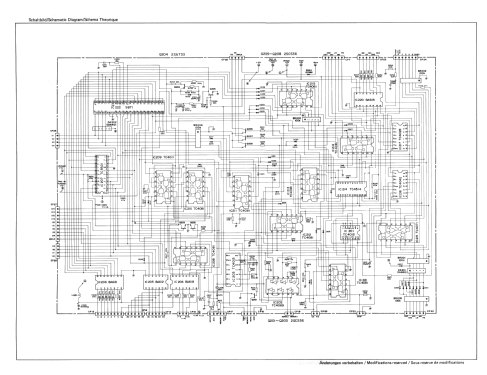

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 / 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

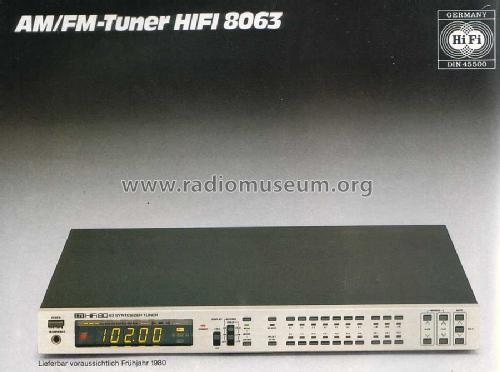

• Model: AM/FM-Tuner Hifi 8063 - ITT Schaub-Lorenz

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 525 x 30 mm / 18.9 x 20.7 x 1.2 inch

• Notes

• 14 UKW-Festsender, Gehäusefarbe champagner.

• Price in first year of sale
• 948.00 DM

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Taxliste Franzis Verlag (Ausg. 1981/82)

• Literature/Schematics (2)
• -- Original prospect or advert (diverse ITT Kataloge 1979 bis 1981)

• Literature/Schematics (3)
• - - Manufacturers Literature (Original Bedienungsanleitung)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
