• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 75962

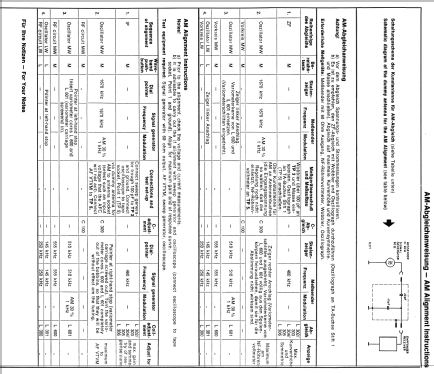

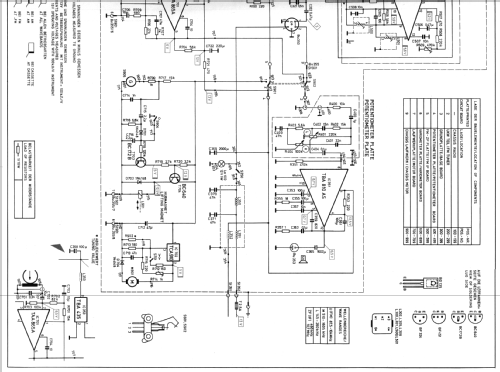

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 11-16 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: TS710 52880203 - ITT Schaub-Lorenz

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 42 x 140 mm / 7 x 1.7 x 5.5 inch

• Notes
• ICs: TCA440, TBA810AS, CA3089AE, TAA865A, TCA910
  Compact-Cassette: 4,75 cm/sek., Halbspur.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 390.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
