• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214267

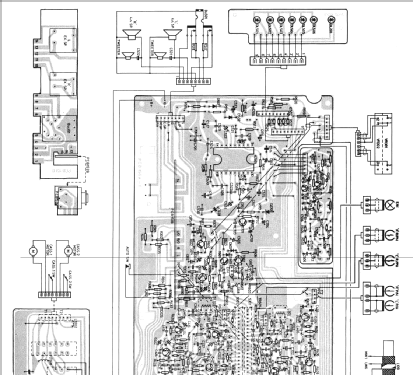

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; 8 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Boombox - Ghettoblaster RC 6600 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 520 x 230 x 110 mm / 20.5 x 9.1 x 4.3 inch

• Notes
• ITT portable 4-Band Radio Doppel-Kassettenrecorder Modell RC 6600 (Boombox, Ghettoblaster).
  2 Teleskopantennen.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Mentioned in
• - - Manufacturers Literature (ITT Katalog 1983)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
