• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1977/1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 118315

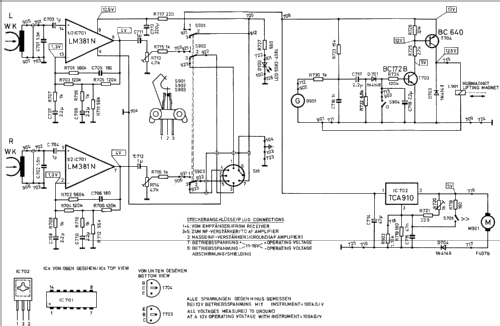

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• BC172 BC640 LM381 LM381 TCA910

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Car 15 Stereo 5332 03 55 - ITT Schaub-Lorenz

• Dimensions (WHD)
• 130 x 45 x 120 mm / 5.1 x 1.8 x 4.7 inch

• Notes
• ICs: 2.
  Stereo-Cassetten-Abspielgerät in Verbindung mit Auto-Radio. Frequenzumfang: 40···8000 Hz ± 5 dB.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• -- Schematic

• Author
• Model page created by Werner Feldmann. See "Data change" for further contributors.

• Other Models

• Here you find 773 models, 710 with images and 366 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from ITT Schaub-Lorenz
