• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90791

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC535 2SC461 2SC460 2SC460 2SC460 2SB75 2SB75 2SB156 2SB156

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

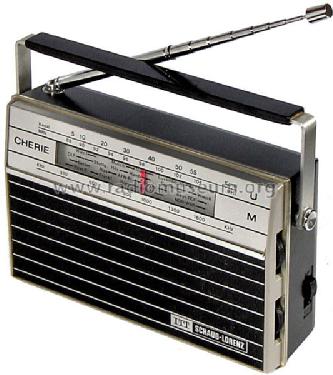

• Model: Cherie 102 5120625 & 52130625 - ITT Schaub-Lorenz

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 190 x 120 x 55 mm / 7.5 x 4.7 x 2.2 inch

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Günter Goda. See "Data change" for further contributors.
