Electronic 1003 Ch= 5861 09 01
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1971 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 357696
Q = techn. papers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 15
- Semiconductors
- AF239S AF106 AF267 BF125 BC172 BF196 BF127 BF123 BF137 BC171 BA243 BB142 BB105 ZTK33 AA119 1N60 BA157 BAV20 BAY21 OA91 E80C2 BY133 TV20
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Electronic 1003 Ch= 5861 09 01 - ITT Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 714 x 478 x 376 mm / 28.1 x 18.8 x 14.8 inch
- Notes
-
Transistors and diodes are only listed one per type
- Net weight (2.2 lb = 1 kg)
- 25.5 kg / 56 lb 2.7 oz (56.167 lb)

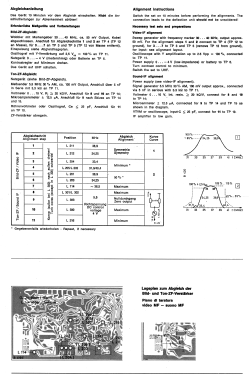

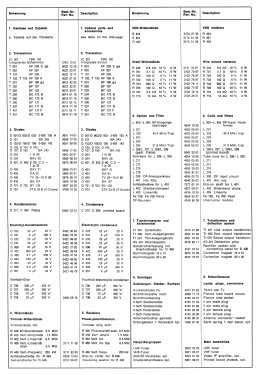

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
