• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75632

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF124 AF136 AF137 AF138 BC172 BC252 AC178 AC179

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

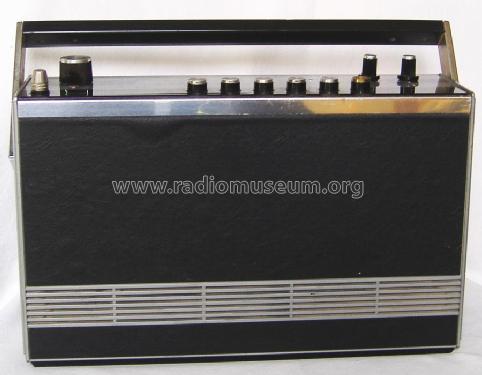

• Model: Golf 100 Europa 52140127 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 278 x 187 x 89 mm / 10.9 x 7.4 x 3.5 inch

• Notes
• Netzbetrieb mit zusätzlichem Netzteil NG3000 möglich.
  Gehäuse: schwarz. Siehe auch hier in Nussbaum-Dekor.

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
