GOLF europa 103

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1972–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28925

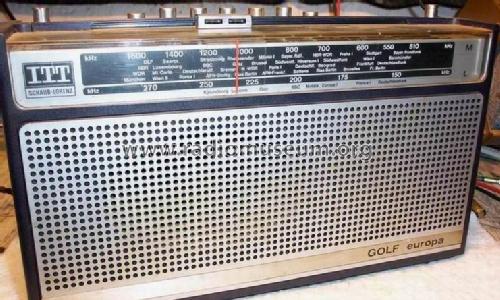

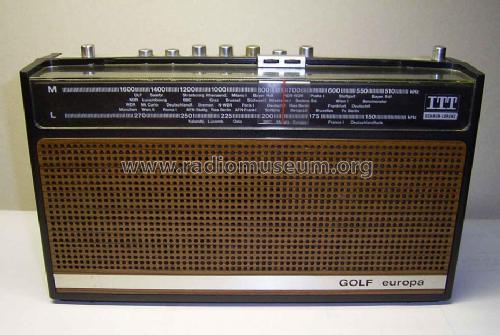

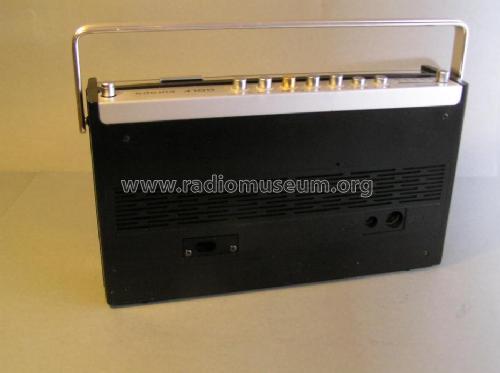

• Picture

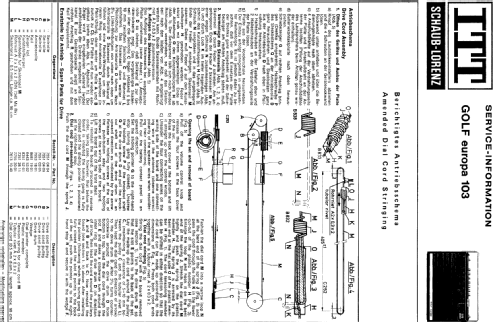

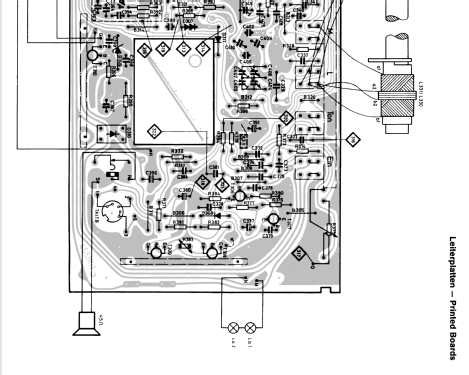

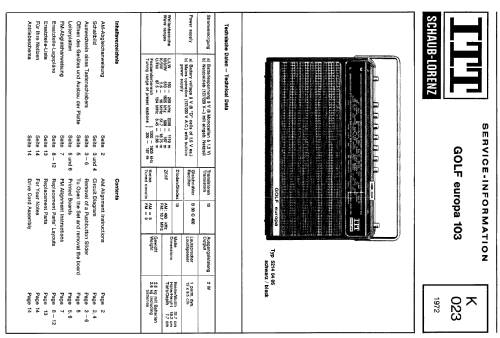

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF125 BF255 BF241 BF240 BF241 BC172 BC252 AC178 AC179 AC117 B30C400

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: GOLF europa 103 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 317 x 192 x 77 mm / 12.5 x 7.6 x 3 inch

• Notes

• Stationstaste "Europa" für einen Festsender im Bereich 1000 - 1605 kHz, welcher von der Gehäuserückseite her eingestellt wird.

  Gehäuseausführungen: schwarz, beige, blau, rot, anthrazit

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Price in first year of sale
• 229.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• - - Manufacturers Literature
