Golf stereo 107 52130277
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79741
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220, 6x1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.5 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Golf stereo 107 52130277 - ITT Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 305 x 240 x 80 mm / 12 x 9.4 x 3.1 inch
- Notes
- 2 IC, 1 Keram.-Filter, 10 Dioden
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)

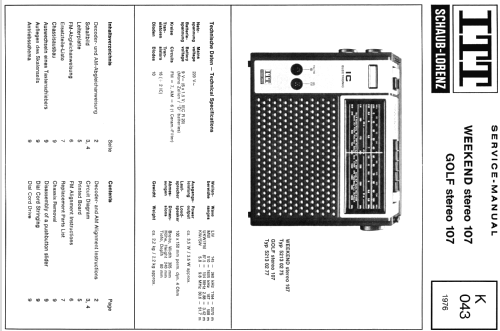

- -- Original-techn. papers.
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
