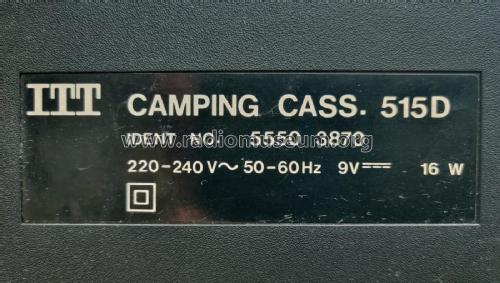

Camping Cassette 515D 5550 3870 OIRT-CCIR
ITT-Graetz
- Country
- Germany
- Manufacturer / Brand
- ITT-Graetz
- Year
- 1989 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291567
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 50-60 Hz, 220-240 / D: 6 × 1,5 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Camping Cassette 515D 5550 3870 [OIRT-CCIR] - ITT-Graetz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 510 x 210 x 157 mm / 20.1 x 8.3 x 6.2 inch
- Notes
-
FM: 2 bands, OIRT (64-76 MHz) and CCIR (87.5-108 MHz).
Double Cassette Deck. 3-band graphic equalizer.See also ITT Camping Cassette 515D with CCIR FM-band only and additional LW.
- Net weight (2.2 lb = 1 kg)
- 3.9 kg / 8 lb 9.4 oz (8.59 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
