• Country
• Germany

• Manufacturer / Brand
• ITT-Graetz

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 242341

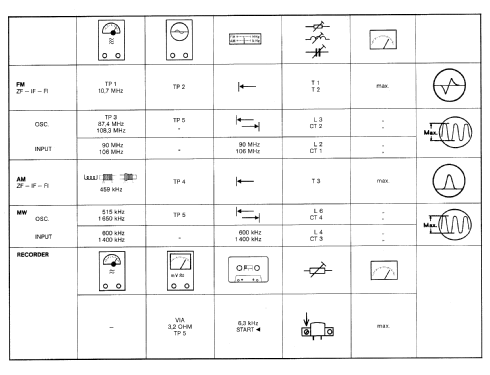

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 2SC2839 2SC536 LA1185 LA1260 LA4160

• Main principle
• Superheterodyne (common); ZF/IF 459/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

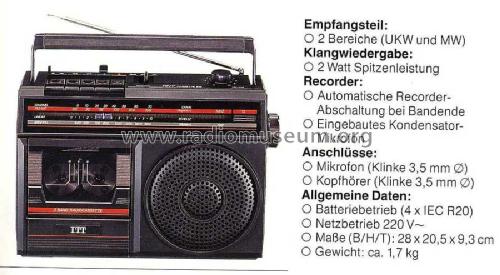

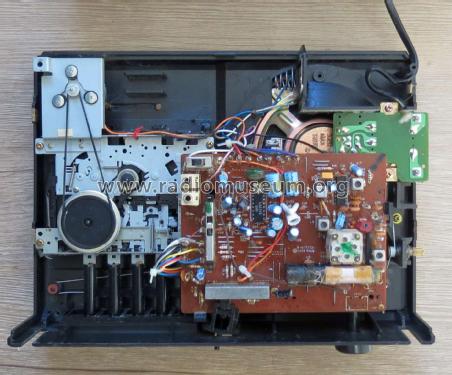

• Model: Tiny Cassette 510 - ITT-Graetz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 205 x 93 mm / 11 x 8.1 x 3.7 inch

• Notes

• Gehäusefarben: Schwarz matt.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)
