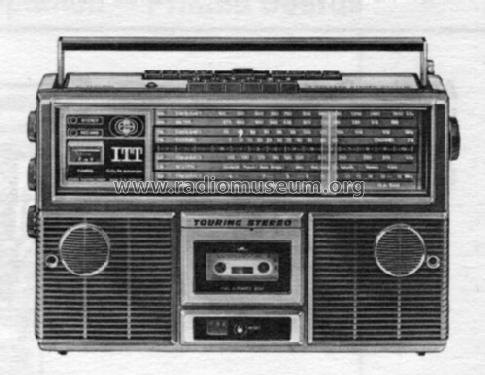

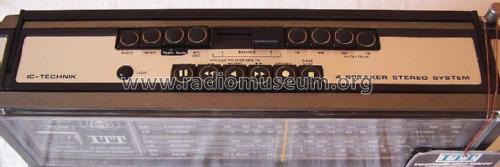

Touring stereo cassette 109(A) 52151641 (stahlgrau)

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76477

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors
• BF324 BF451 BC308 BC238 BC252 2SC1327 2SC828 2SC1383 BC239 BC172 BC548 BD517 BA1320 TBA810

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 127/220/9 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 15 cm = 5.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Touring stereo cassette 10952151641 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 430 x 265 x 100 mm / 16.9 x 10.4 x 3.9 inch

• Notes

• Radiorecorder mit 2 eingebauten Mikrofonen; Ausgangsleistung 2 x 1,8W;
  Abstimmanzeige per Instrument.

  Von den 4  permanent-dynamischen  Ovallautsprechern haben jeweils
  zwei die Maße 9 x 15 cm und 2 x 4 cm.

  Halbleitertypen einmal aufgeführt

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Price in first year of sale
• 500.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
