HiFi 80 Integrated Amplifier 8045
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1979 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 131440

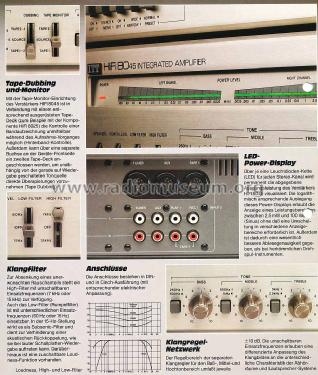

Scan aus ITT-Prospekt von 1979

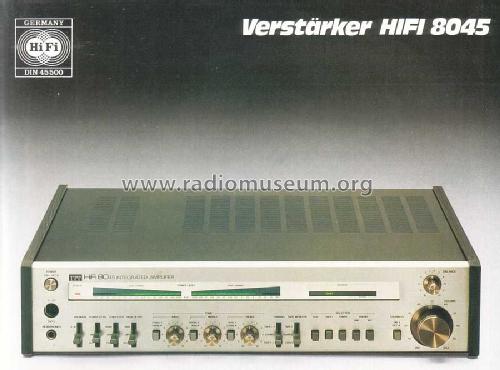

Scan aus ITT-Prospekt von 1979

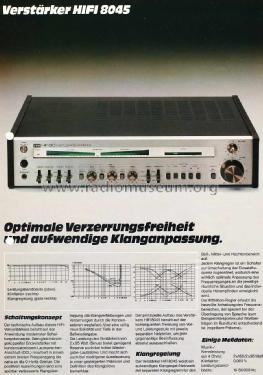

Scan aus ITT-Prospekt 1979
Scan aus ITT-Prospekt 1979

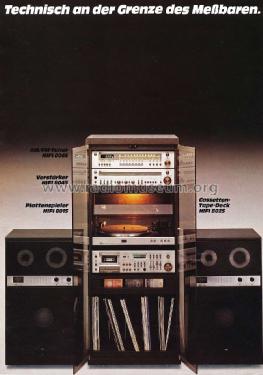

aus itt katalog 1979
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: HiFi 80 Integrated Amplifier 8045 - ITT Schaub-Lorenz
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 480 x 105 x 370 mm / 18.9 x 4.1 x 14.6 inch
- Notes
- Stereo-Verstärker. Alle Anschlüße in DIN und Cinch. LED-Aussteueranzeige. Eingänge: Phono (Magnet und Kristall), Tuner, Aux, 2x Tape. Lautsprecher A+B
- Net weight (2.2 lb = 1 kg)
- 13.1 kg / 28 lb 13.7 oz (28.855 lb)
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
