• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975/1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 134500

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi Stereo Recorder 88 - ITT Schaub-Lorenz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 120 x 280 mm / 15.4 x 4.7 x 11 inch

• Notes

• ITT Schaub-Lorenz HiFi Stereo Recorder 88.

  Frequenzumfang: 40···12000 Hz mit Fe₂O₃-Band, 40···14000 Hz mit CrO₂-Band; Rauschunterdrückung DOLBY B;

  ICs: 2 x PC3358


• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Price in first year of sale
• 849.00 DM

• Source of data
• Handbuch VDRG 1975/1976

• Literature/Schematics (1)

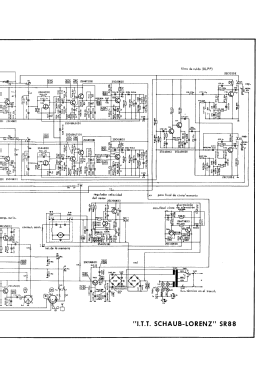

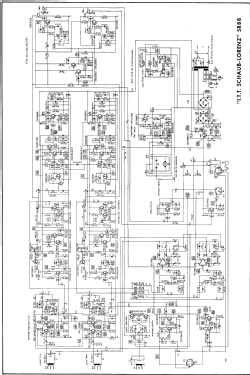

• -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo III, 1976)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
