• Country
• Germania

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1984–1986

• Category
• Radio (o sintonizzatore del dopoguerra WW2)

• Radiomuseum.org ID
• 128342

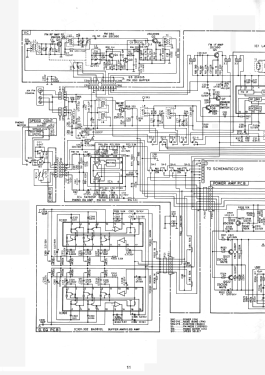

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• A semiconduttori.

• Semiconductors

• Main principle
• Supereterodina (in generale)

• Wave bands
• Onde medie (OM), lunghe (OL) e MF (FM).

• Details
• Altre combinaz. - vedere le nota

• Power type and voltage
• Alimentazione a corrente alternata (CA) / 220 Volt

• Altoparlante
• - Questo apparecchio richiede altoparlante/i esterno/i.

• Potenza d'uscita
• 50 W (qualità ignota)

• Materiali
• Plastica (non bachelite o catalina)

• from Radiomuseum.org

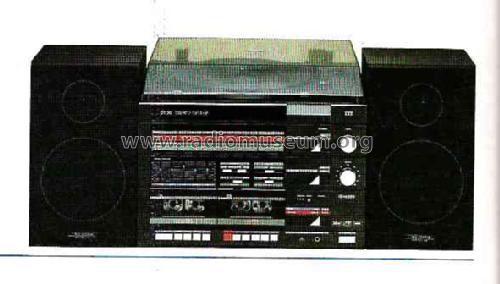

• Model: HiFi-Stereo-System ST30 - ITT Schaub-Lorenz

• Forma
• Soprammobile basso, con andamento orizzontale (grosse dimensioni).

• Dimensions (WHD)
• 440 x 345 x 375 mm / 17.3 x 13.6 x 14.8 inch

• Notes
• Doppelcassettendeck und Belt-Drive-Plattenspieler. 5fach Equalizer. 2 separate Lautsprecherboxen mit 50 Watt.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
