• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1980–1982

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 276729

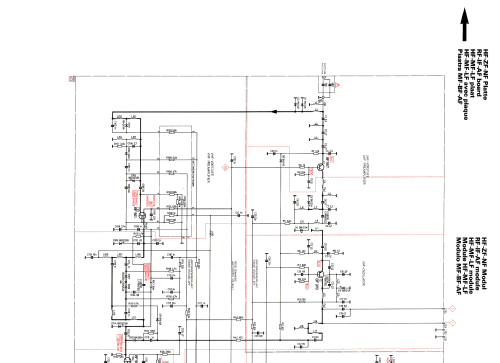

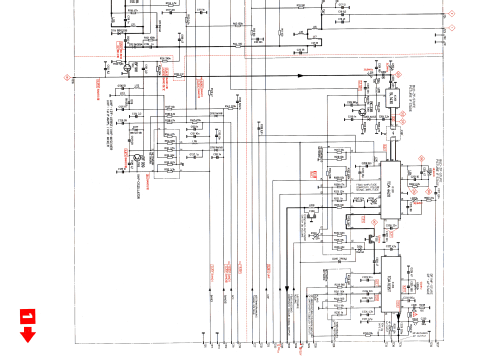

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org
• Model: Ideal-Color 3402 - ITT Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 455 x 430 mm / 24.8 x 17.9 x 16.9 inch

• Notes

• 56 cm-Bildröhre, 16 VHF/UHF Programme, LED Display.
  Gehäusefarben: nußbaumfarbig braun/silber palisanderfarbig.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Mentioned in
• -- Original prospect or advert (ITT Audio Video Elektronik 1981)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
