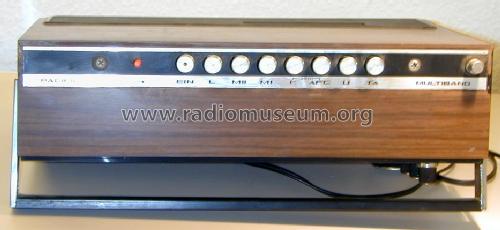

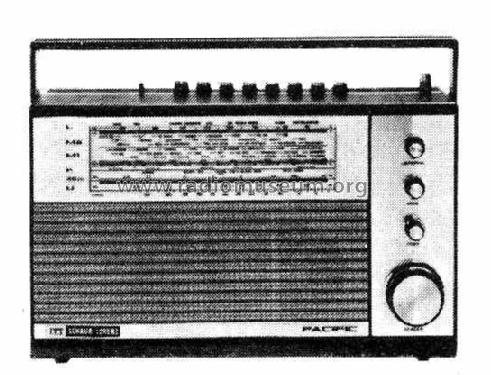

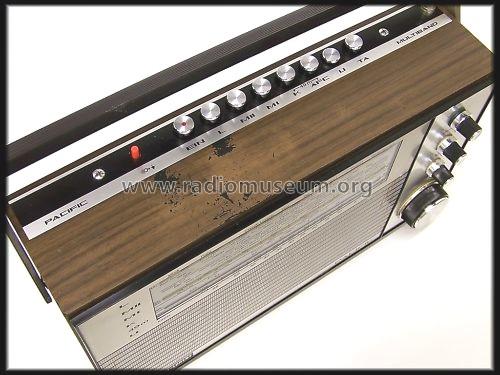

Pacific Multiband 52150201

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1968–1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126318

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BF125 BF125 BF125 BF125 BF121 BF121 BF125 BC252 BC252 BC170 or. BC173 BC252 AC178 AC179 BA111 BA127 BA127 BA127 AA112 AA112 AA143 ZE2

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage

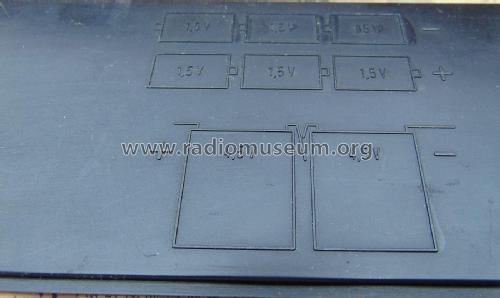

• Line / Batteries (any type) / 127; 220 / D: 6 x 1,5 or 3R12: 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pacific Multiband 52150201 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 365 x 226 x 128 mm / 14.4 x 8.9 x 5 inch

• Notes

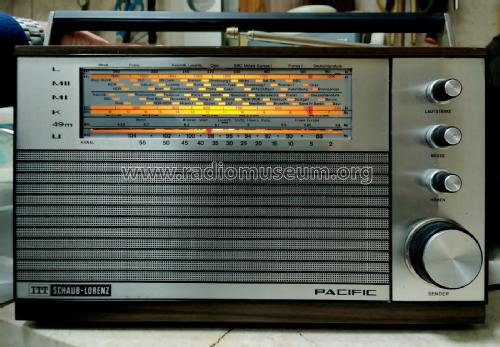

• Mittelwelle in zwei gespreizte Bereiche aufgeteilt. Per Taster zuschaltbare Skalenbeleuchtung.

  UKW: 87,5 - 104 MHz
  KW: 6800 - 18100 kHz
  49m-Band: 5800 - 6400 kHz
  MW1: 510 - 1070 kHz
  MW2: 995 - 1630 kHz
  LW: 146 - 285 kHz

  Netzbetrieb mit herausnehmbaren Netzteil NG3000 möglich.

  Im Handbuch für Rundfunk Fernsehen Phono 1968/69 irrtümlich mit 14 Transistoren (davon 3x BF121) gelistet. Die Service-Unterlagen des Jahrgangs 1968/69 weisen tatsächlich 13 Transistoren aus.

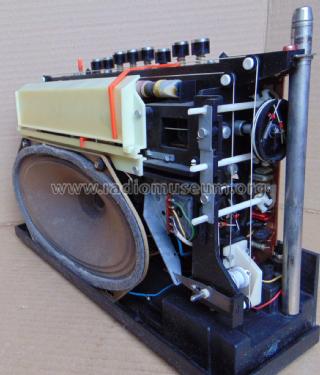

  Speaker: 13× 26 cm elliptical.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Handbuch Rundfunk Fernsehen Phono 1968/69 (RFP) S.296

• Literature/Schematics (2)
• Handbuch Rundfunk Fernsehen Phono 1969/70 (RFP) S.345

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
