• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1976/1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 76718

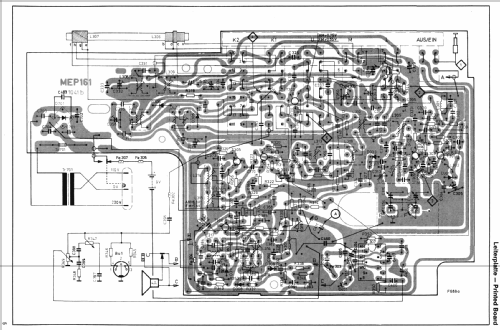

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-117; 220-240 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Polo Electronic 107 52130271 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 237 x 218 x 71 mm / 9.3 x 8.6 x 2.8 inch

• Notes
• Lautsprecher cm 12 x cm 8
  Kurzwelle: 13 bis 49 Meter: K1 49 bis 31, K2 25 bis 13.
  IC: TBA820.
  ITT Schaub-Lorenz Polo Electronic.
  Gehäuse: teak
  Siehe auch:
  52130267 = schwarz
  52130269 = silber.

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Source of data
• Handbuch VDRG 1976/1977 / Radiokatalog Band 2, Ernst Erb
