• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29174

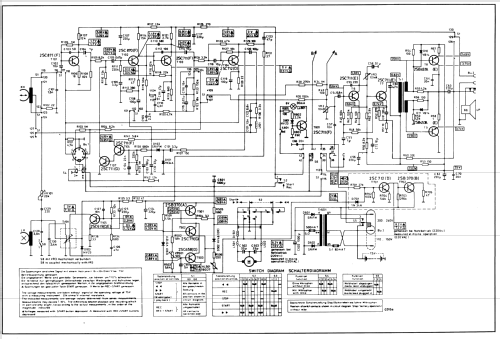

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-150; 200-240 / 5×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: radio-recorder SL74 [22 Trans.] - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 66 x 245 mm / 8.9 x 2.6 x 9.6 inch

• Notes
• Aussteuerungsautomatik für Aufnahme.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb

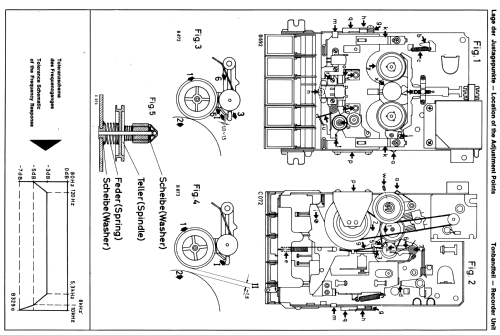

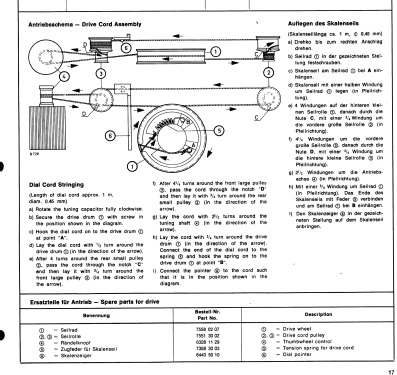

• Literature/Schematics (1)
• -- Original-techn. papers.
