• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82816

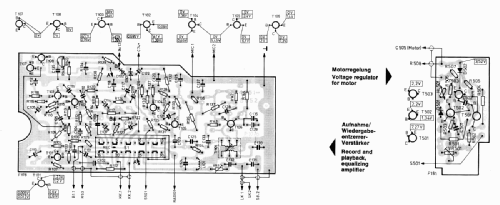

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-130; 220-240 / 5 × 1,5 / dryfit 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Recorder RC1001SK / 53312513 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 294 x 79 x 264 mm / 11.6 x 3.1 x 10.4 inch

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
