RC520 53311035

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75709

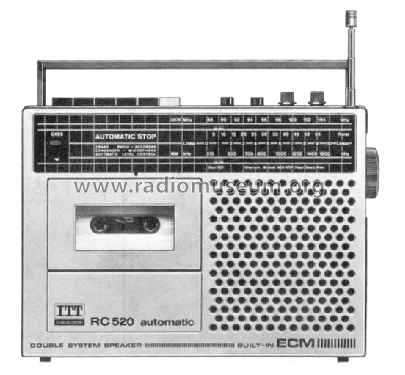

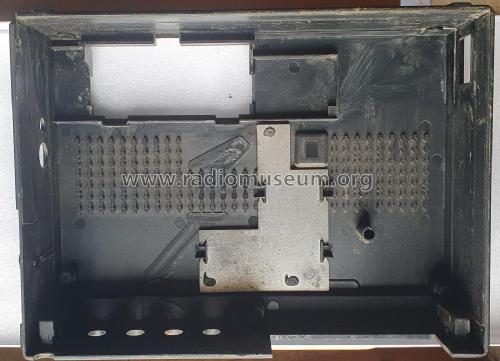

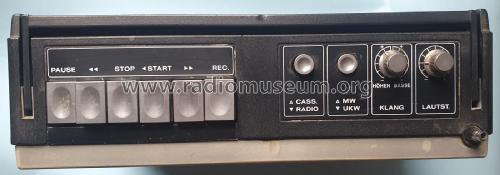

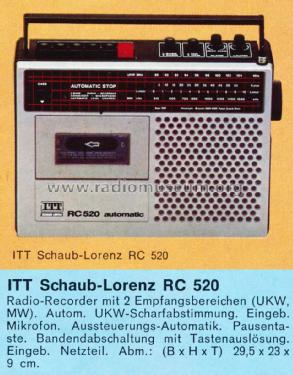

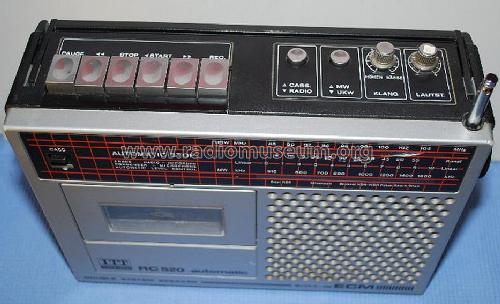

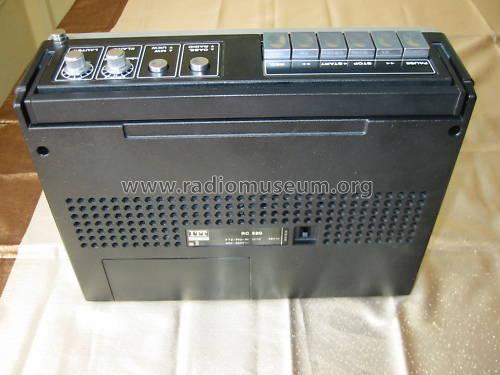

• Picture

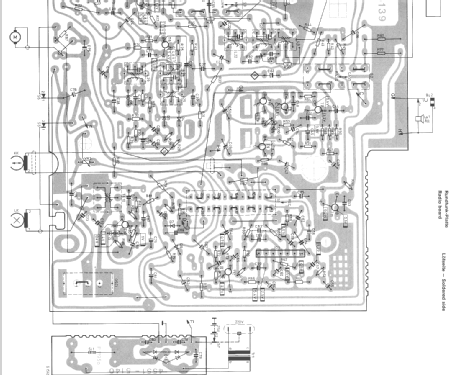

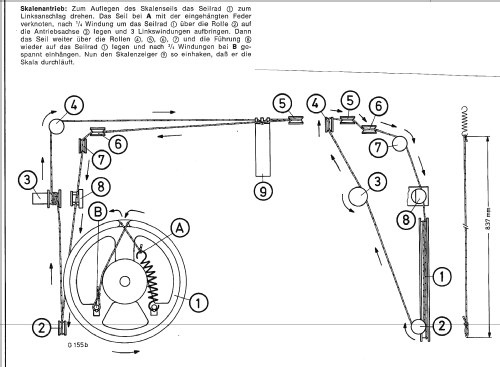

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-240 / 5×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

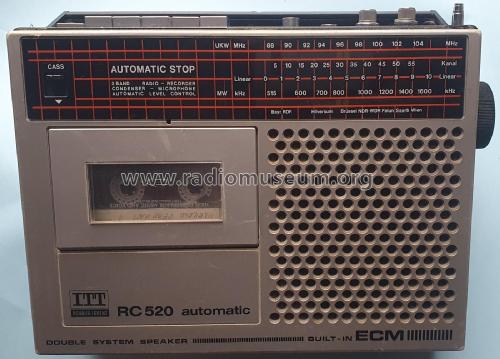

• Model: RC520 53311035 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 230 x 90 mm / 11.6 x 9.1 x 3.5 inch

• Notes
• ICs: 1.
  Eingebautes Kondensator-Mikrofon.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
