• Country
• Germany

• Manufacturer / Brand
• ITT-Graetz

• Year
• 1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120542

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BF324 BF451 BF451 BF451 TDA1220 TBA820

• Main principle
• Superheterodyne (common); ZF/IF 459/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RP1200 - ITT-Graetz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 165 x 55 mm / 8.9 x 6.5 x 2.2 inch

• Notes
• ICs: TBA820, TDA1220.

• Source of data
• - - Data from my own collection

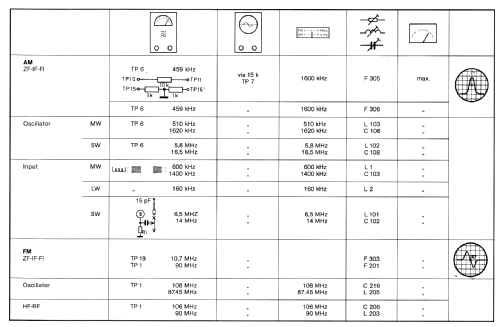

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
