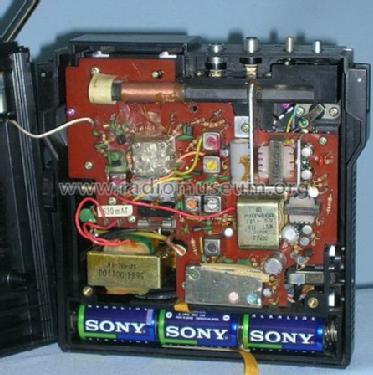

RX75 Professional 5233 01 75 UKW

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89761

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / R14: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RX75 Professional 5233 01 75 [UKW] - ITT Schaub-Lorenz

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 185 x 185 x 60 mm / 7.3 x 7.3 x 2.4 inch

• Notes

• ITT Schaub-Lorenz Kofferempfänger RX75 Professional.
  Einknopfabstimmung ohne Umschalten; getrennte UKW- und MW-Instrumentenskalen. Nah- und Fernschalter für MW. Ausführung: schwarz.Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

  Siehe auch ITT Schaub Lorenz RX 75 Professional mit Flugfunk-Bereich (AIR) anstelle des UKW-Bereichs.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• Handbuch VDRG 1975/1976
