SL51 Automatic 51312621

ITT Schaub-Lorenz

  • Year
  • 1970/1971
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 28156

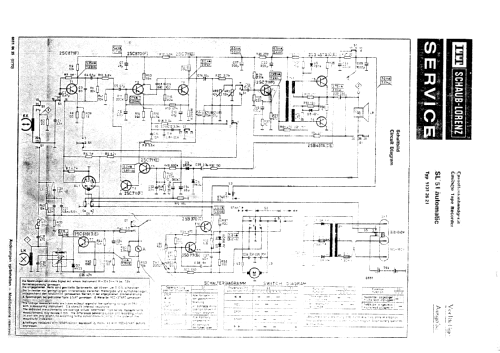

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110-150; 200-240 / 5×1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: SL51 Automatic 51312621 - ITT Schaub-Lorenz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 170 x 63 x 236 mm / 6.7 x 2.5 x 9.3 inch
  • Notes
  • Aussteuerungsautomatik für Aufnahme.
  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Price in first year of sale
  • 219.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model SL51 Automatic is part of the collections of the following members.

 Forum

Forum contributions about this model: ITT Schaub-Lorenz: SL51 Automatic 51312621

Threads: 1 | Posts: 1

Weiß jemand vielleicht den Durchmesser des Antriebsriemens für das SL 51 ??

viele Grüße



Werner

Werner Ehehalt, 13.Feb.13

Weitere Posts (1) zu diesem Thema.
