• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113476

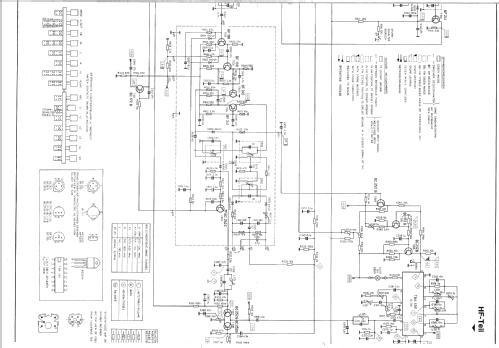

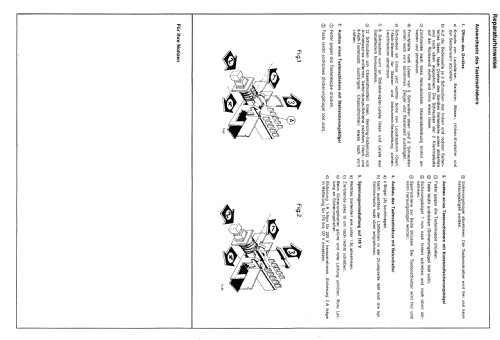

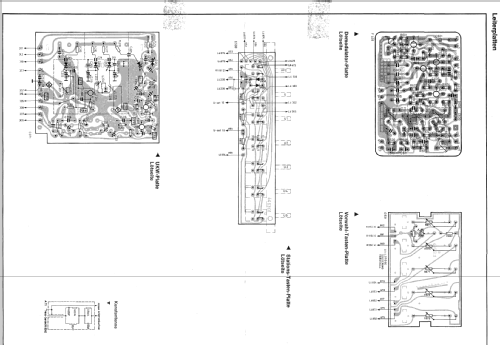

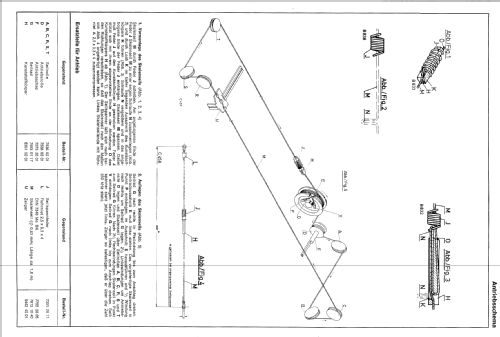

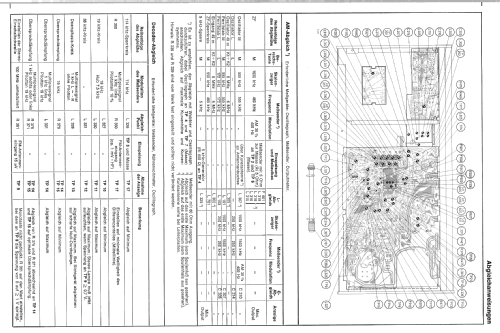

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo 3501 HiFi Electronic 5253-06-01 - ITT Schaub-Lorenz

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 630 x 105 x 290 mm / 24.8 x 4.1 x 11.4 inch

• Notes
• ICs: 1.
  HiFi-Stereo-Steuergerät. Ausgangsleistung: 2× 30 W (Sinus). Eingänge für Magnet-TA, Kristall-TA, TB; Ausgänge für 2× 2 LS.
  Gehäuse: silber, schwarz oder Bronze Eloxal.

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Literature/Schematics (1)
• Funk-Technik (FT) (22/1975, S. 739 / Neuvorstellung)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
