Stereo 4500 HiFi Regie
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1973–1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29097

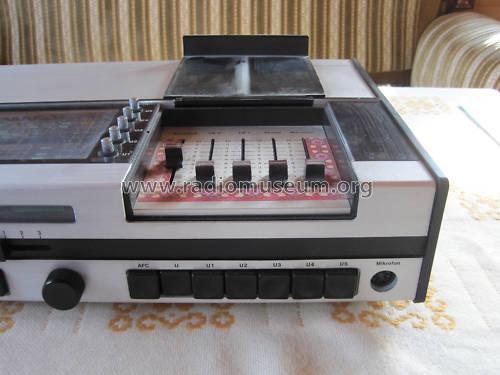

Ansicht von oben
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 56
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo 4500 HiFi Regie - ITT Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 630 x 100 x 290 mm / 24.8 x 3.9 x 11.4 inch
- Notes
- ICs: 1.
Stereo-Steuergerät mit Mischpult. NF-Verstärker mit 2 Endstufen je 30 W (Sinus).
Gehäuse: 52530255 = Metall-Look, 52530257 = Schwarz.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- External source of data
- Erb
- Source of data
- Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
