• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1972/1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28844

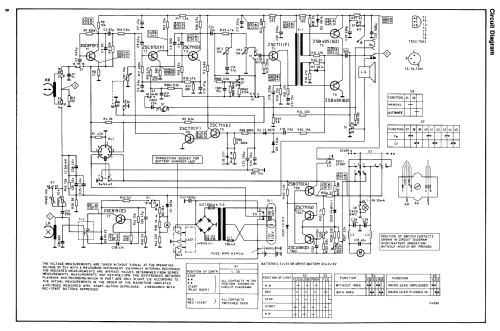

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-240 / 5 ×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: studio recorder 60-Cr - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 66 x 250 mm / 7.9 x 2.6 x 9.8 inch

• Notes

• Aussteuerungsautomatik abschaltbar.

  Im VDRG-Handbuch 1972/73 als studio recorder 60-Cr bezeichnet.

  ---

  Model studio recorder 60-Cr is differing from model studio recorder 60M by being equipped with a separate reporter microphone with remote control.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• - - Manufacturers Literature
