• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73339

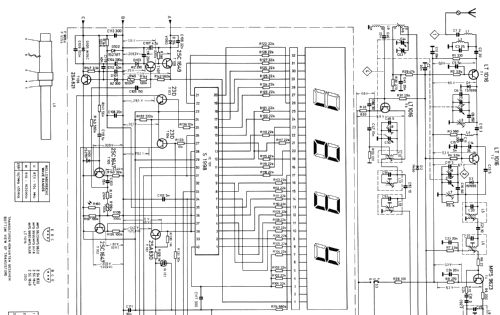

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Synchrotronic 107 52410429 - ITT Schaub-Lorenz

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 228 x 92 x 212 mm / 9 x 3.6 x 8.3 inch

• Notes
• Uhren-IC: S1998.

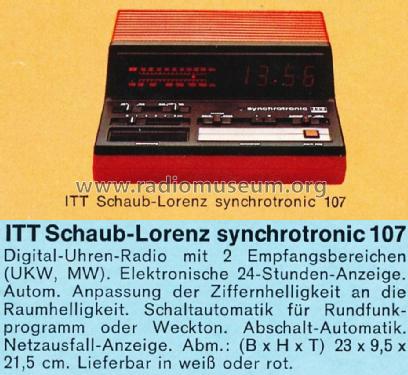

  ITT Schaub-Lorenz Heimempfänger mit elektronischer Schaltuhr Synchrotronic 107.
  Gehäuse: beige. Siehe auch 52410441 = weiss; 52410443 = rot.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Source of data
• Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
