• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72924

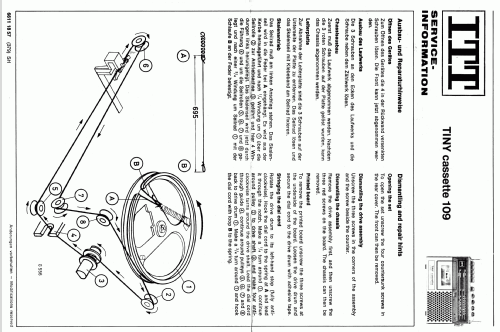

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-240 / UM2: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Tiny Cassette 109 53311061 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 190 x 75 mm / 11.4 x 7.5 x 3 inch

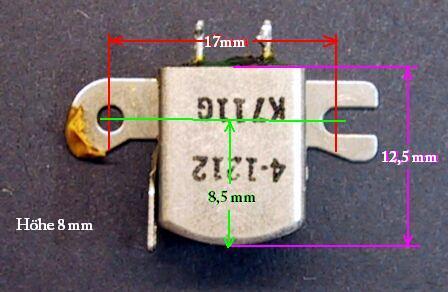

• Notes

• ITT Schaub-Lorenz Portable 2Band Radiorecorder Modell Tiny cassette 109.
  AFC-Automatik
  Eingebautes Mikrofon
  Automatische Aufnahme-Aussteuerung
  Bandendabschaltung
  Teleskop-Antenne, Tragegriff
  Leistungsaufnahme 8 Watt.
  13 Dioden, 1 Netzgleichrichter

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Price in first year of sale
• 219.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
