Tiny electronic 106

ITT Schaub-Lorenz

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
ITT Schaub-Lorenz

Year
1975/1976

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
92013

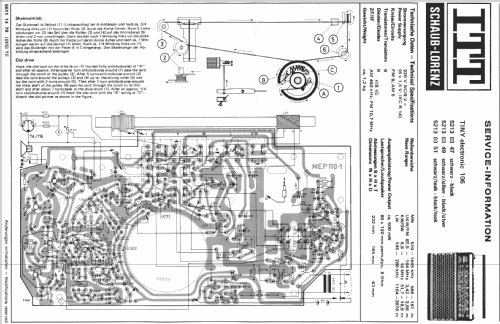

Schematics

Tiny electronic 106; ITT Schaub-Lorenz (ID = 185061) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 185060) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 877252) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 877253) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 877255) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 877254) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 877256) Radio — ITT Schaub-Lorenz Tiny electronic 106 (3)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2690369) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2512676) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2512678) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2512680) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2514084) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2512675) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2512679) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2512674) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 528212) Radio — ITT Schaub-Lorenz Tiny electronic 106 (2)
Vendu

Tiny electronic 106; ITT Schaub-Lorenz (ID = 528213) Radio — ITT Schaub-Lorenz Tiny electronic 106 (2)
Vendu

Tiny electronic 106; ITT Schaub-Lorenz (ID = 532763) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 532760) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 532761) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 532762) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 532764) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 532766) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

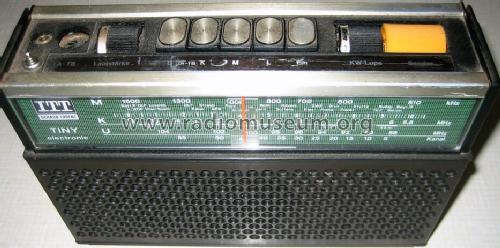

Tiny electronic 106; ITT Schaub-Lorenz (ID = 614795) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

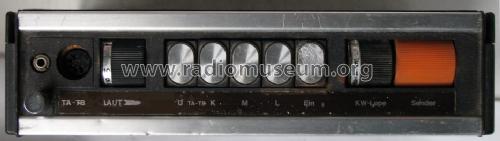

D-ITT-Tiny elektronik 106

Tiny electronic 106; ITT Schaub-Lorenz (ID = 614796) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

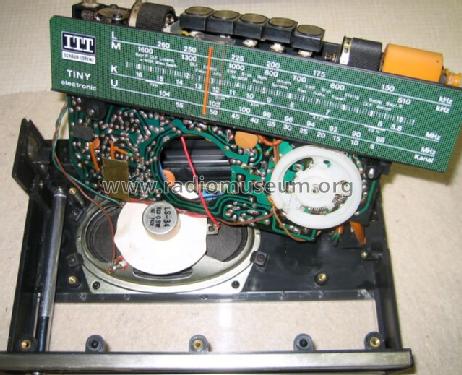

Tiny elektronik 106.Innen

Tiny electronic 106; ITT Schaub-Lorenz (ID = 614797) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)
Tiny elektronik 106-Rueckw.

Tiny electronic 106; ITT Schaub-Lorenz (ID = 1176992) Radio — ITT Schaub-Lorenz Tiny electronic 106 (2)
French Service Manual

Tiny electronic 106; ITT Schaub-Lorenz (ID = 1494160) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 1494161) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 1494162) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 1494163) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2254021) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Tiny electronic 106; ITT Schaub-Lorenz (ID = 2254026) Radio — ITT Schaub-Lorenz Tiny electronic 106 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
9

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Tuned circuits
5 AM circuit(s) 8 FM circuit(s)

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Line / Batteries (any type) / 220 / 6×1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
0.6 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Tiny electronic 106 - ITT Schaub-Lorenz

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
232 x 165 x 63 mm / 9.1 x 6.5 x 2.5 inch

Notes
5213 03 47 = schwarz / 5213 03 49 = schwarz-silber / 5213 03 51 = schwarz-teak. Griff jeweils in Holz-Dekor.Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

Net weight (2.2 lb = 1 kg)
1.2 kg / 2 lb 10.3 oz (2.643 lb)

Source of data
Handbuch VDRG 1975/1976

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Hugo Sneyers. See "Data change" for further contributors.
