• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28641

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• CS9016 CS9018 CS9018 M193 CS9018 CS1312 CS1312 BT1 2SB364 2SD104

• Main principle
• Superheterodyne (common); ZF/IF 452 or 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 6 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

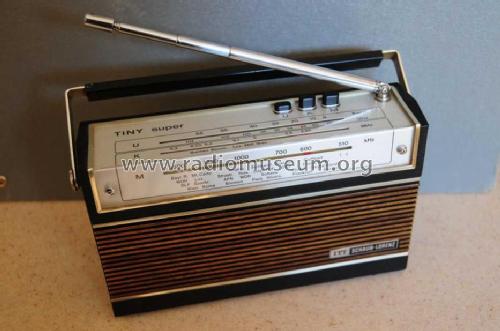

• Model: Tiny Super 52130709 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 140 x 55 mm / 8.7 x 5.5 x 2.2 inch

• Notes

• Netzbetrieb mit zusätzlichem Netzteil möglich.

  automatische UKW-Scharfabstimmung, Winkelskala, zwei Antennen, Netzanschlußgerät NG 3000, Gehäusefarbe in schwarz.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
