• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86958

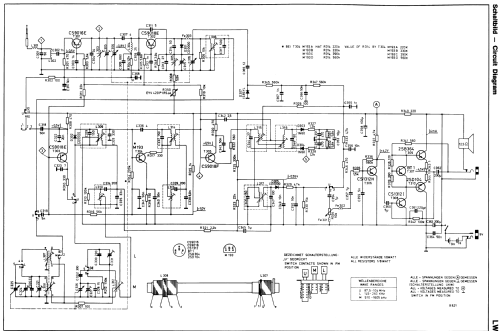

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• CS9016 CS9018 CS9018 M193 CS9018 CS1312 CS1312 BT1 2SB364 2SD104

• Main principle
• Superheterodyne (common); ZF/IF 452 or 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Tiny Super LW 52130731 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 140 x 55 mm / 8.7 x 5.5 x 2.2 inch

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Source of data
• - - Data from my own collection / Radiokatalog Band 2, Ernst Erb
