• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75143

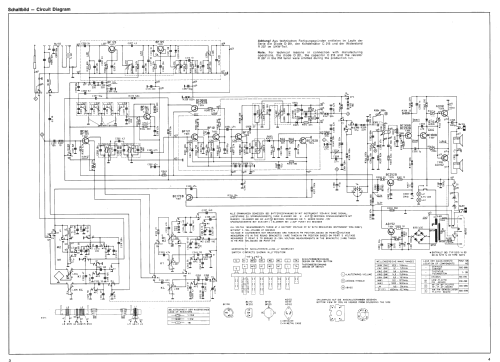

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 6×1,5; 2×4,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

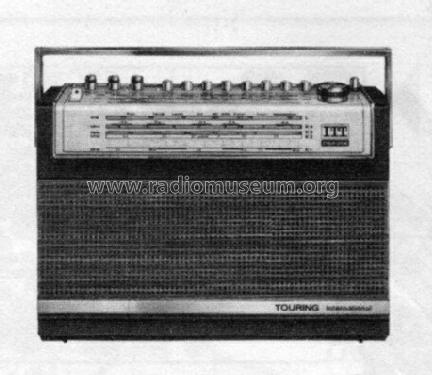

• Model: Touring international 103 52151421 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 335 x 220 x 77 mm / 13.2 x 8.7 x 3 inch

• Notes
• 2 MW-Bänder (512-1070 kHz und 1000-1630 kHz), 4 KW-Bänder.
  Gehäuse: 52151401 = schwarz, Grill Dekor Teak, 52151421 = schwarz, Grill mattschwarz, 52151423 = marineblau, Grill silber, 52151425 = sandbeige, Grill Dekor Teak.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 329.00 DM

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)

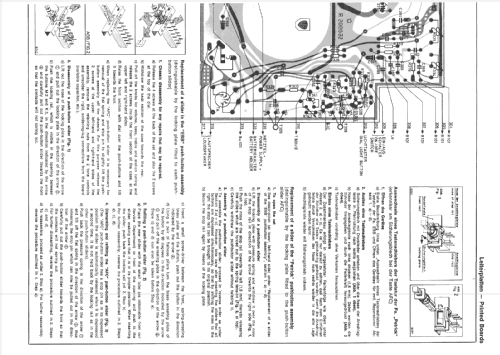

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
