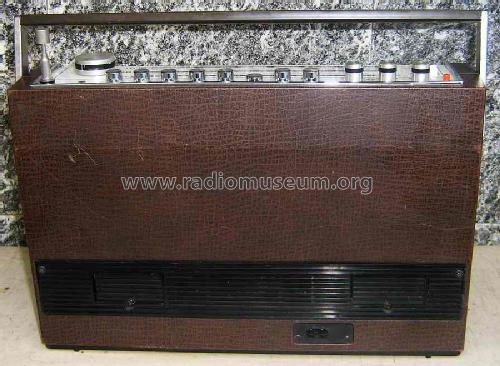

Touring international 102 52150947

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75141

• Picture
• Schematics

Previous Next

Previous Next

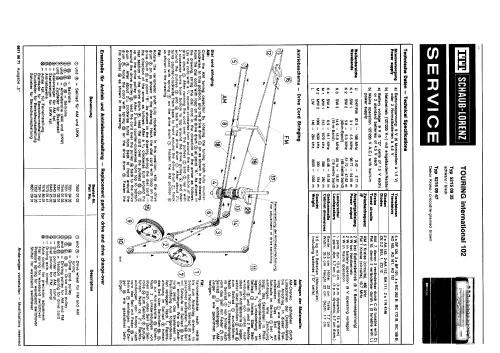

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127/220/9 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Touring international 102 52150947 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 335 x 220 x 77 mm / 13.2 x 8.7 x 3 inch

• Notes
• 2 MW-Bänder (512-1070kHz + 1000-1630kHz), 4 KW-Bänder. 2 Ausführungen: 52150935=schwarz, 52150947=Dekor Kroko

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
