• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127754

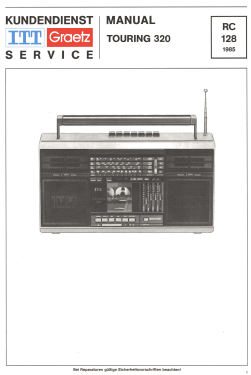

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 32

• Semiconductors
• BF506 BF451 BC239 BC238 BC337 BD517 BC308 BD434 BC327 TDA1220 TEA5580 TDA1905 TDA1905 LM1112 LM1112

• Main principle
• Superheterodyne (common); ZF/IF 459/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220/ 8 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 20 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

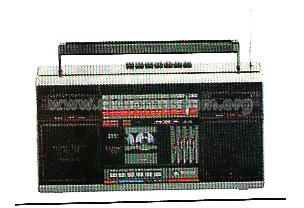

• Model: Touring Stereo Cassette 320 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 470 x 250 x 125 mm / 18.5 x 9.8 x 4.9 inch

• Notes

• Transistoren teilweise mehrfach vorhanden

  Gehäusefarben: Silbergrau.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature (ITT Katalog 1989)

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
