• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1983–1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82428

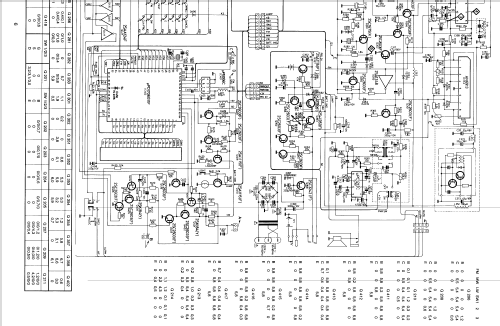

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110/220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

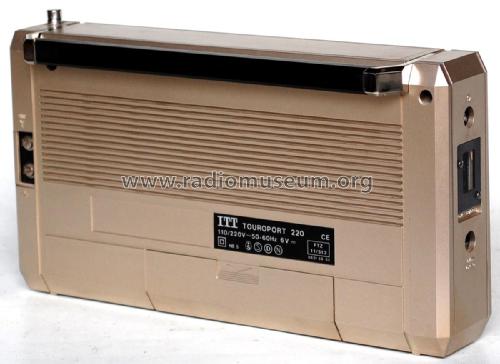

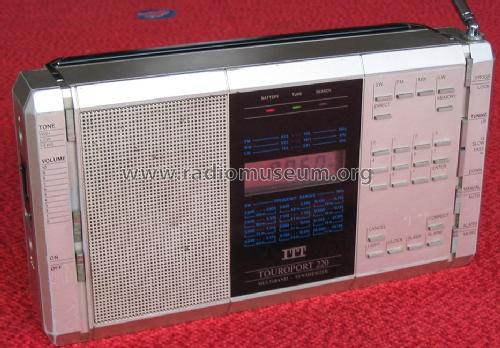

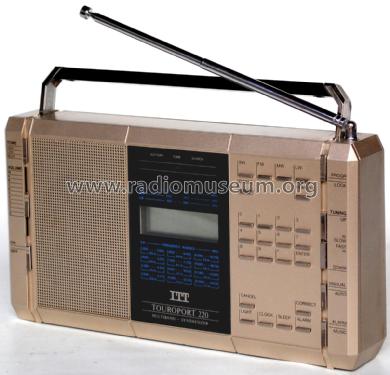

• Model: Touroport 220 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 150 x 55 mm / 11 x 5.9 x 2.2 inch

• Notes
• shortwave coverage 120/90/75/60/49/41/31/25/19/16/13/11 m; digital readout, direct keypad frequency entry, 10 memories, clock/timer

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 450.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
