TRC 5000 Color

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1979–1981

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 133323

• Picture

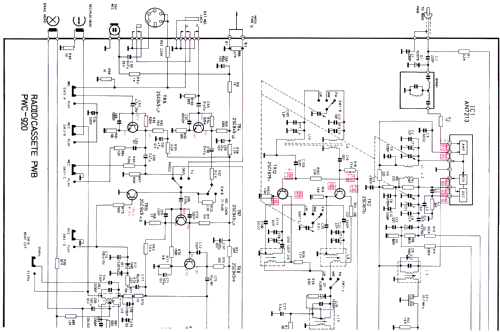

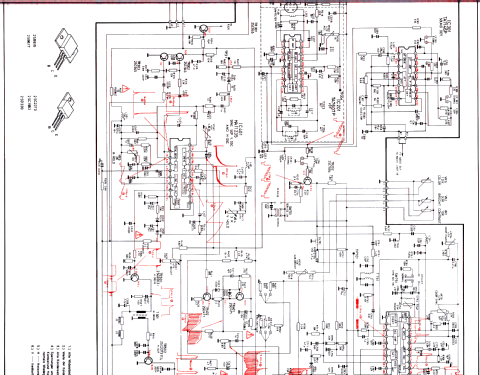

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Other, details in remarks or not known. / 220; 12; 10 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TRC 5000 Color - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 420 x 130 x 320 mm / 16.5 x 5.1 x 12.6 inch

• Notes
• ITT TRC 5000 Color;
  12 cm Inline Röhre, PAL Farbfernseher mit elektronischem CCIR B/G VHF-/UHF Tuner und 6 Festsendertasten.
  L-M-UKW Radioteil, Quarz Schaltuhr,
  Cassetten Recorder mit eingeb. Mikrofon und Bandzählwerk. Metallic/Anthrazit.

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Source of data
• -- Original prospect or advert
