• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1973/1974

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 29140

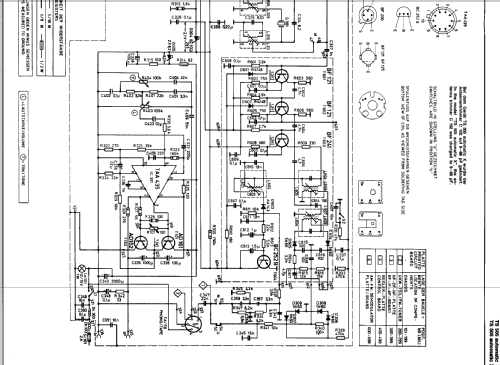

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

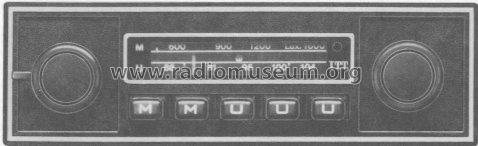

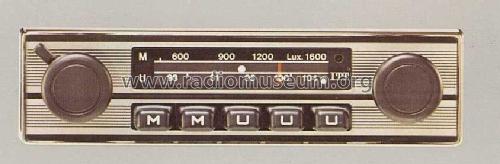

• Model: TS505 automatic 52870109 - ITT Schaub-Lorenz

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 42 x 147 mm / 7 x 1.7 x 5.8 inch

• Notes
• Automatische UKW-Scharfabstimmung,5 Stationswahltasten.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
