TS703 Informatic
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1977/1978
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 125547

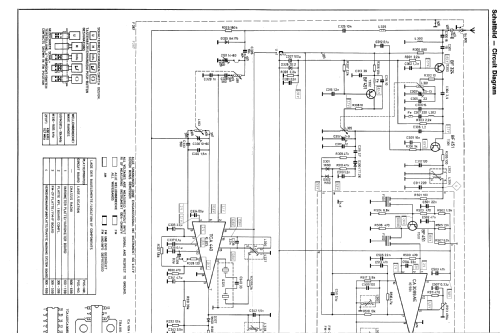

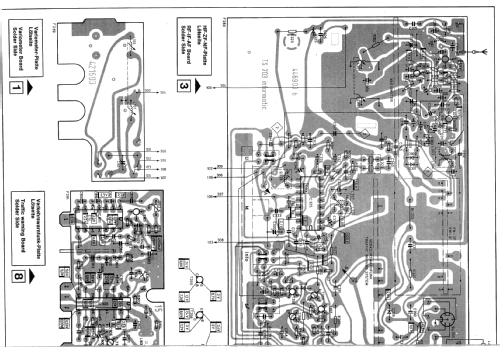

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s) 6 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: TS703 Informatic - ITT Schaub-Lorenz
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 178 x 42 x 90 mm / 7 x 1.7 x 3.5 inch
- Notes
- ICs: 5.
Integrierter Verkehrsfunk-Decoder.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Source of data
- Handbuch VDRG 1977/1978
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
