• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975/1976

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 118322

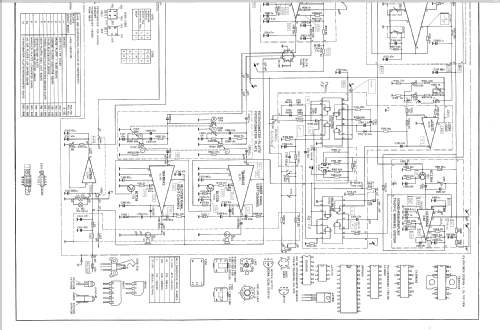

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: TS708 5288 01 01 - ITT Schaub-Lorenz

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 42 x 148 mm / 7 x 1.7 x 5.8 inch

• Notes
• Sendersuchlauf.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Price in first year of sale
• 550.00 DM

• Mentioned in
• Funk-Technik (FT) (19/1975, S. 627 / Neuvorstellung u. 9/1976, S. 287)

• Author
• Model page created by Werner Feldmann. See "Data change" for further contributors.
