• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1973–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28972

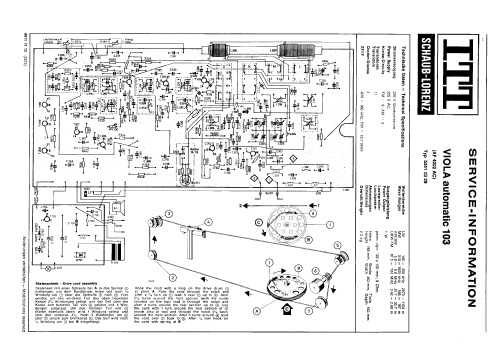

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

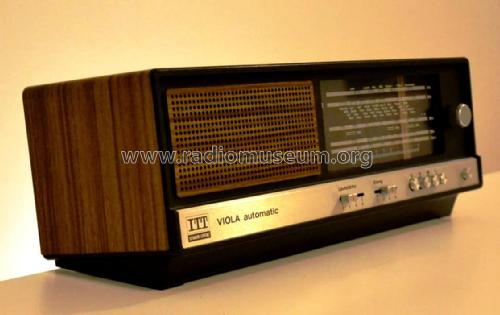

• Model: VIOLA automatic 103 52410329 - ITT Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 462 x 168 x 163 mm / 18.2 x 6.6 x 6.4 inch

• Notes
• 8 Dioden

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
