Viola DELUXE 101 in Nussbaum 5242 05 35

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1970–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27933

• Picture

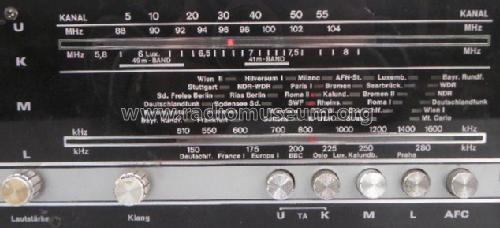

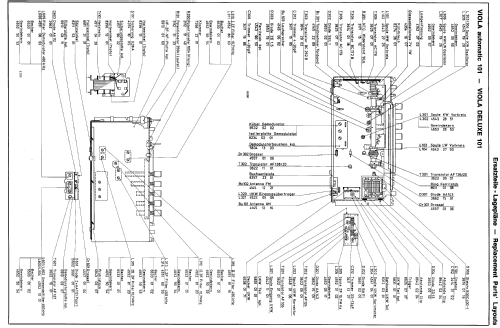

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF124 AF137 AF136 AF138 BC252 BC172 AC178 AC179 AC117 B30C400-1

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Viola DELUXE 101 in Nussbaum 5242 05 35 - ITT Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 130 x 150 mm / 20.5 x 5.1 x 5.9 inch

• Notes

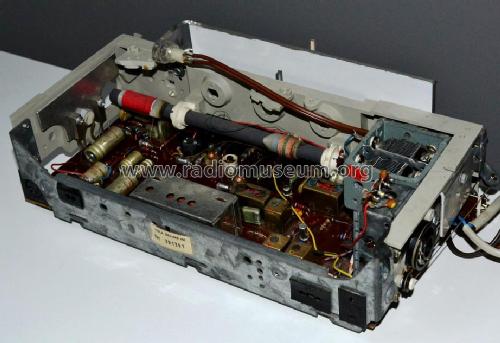

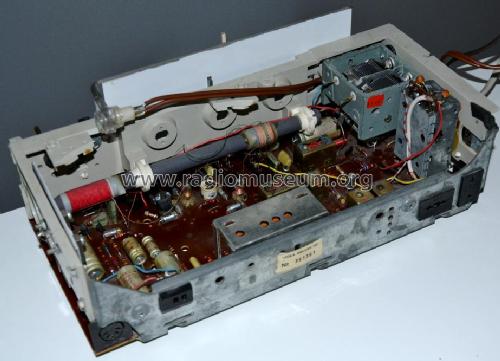

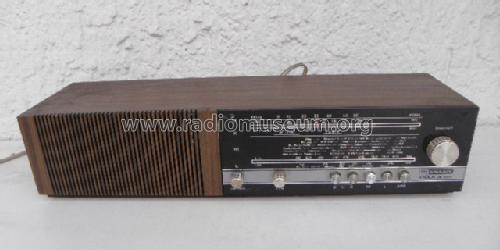

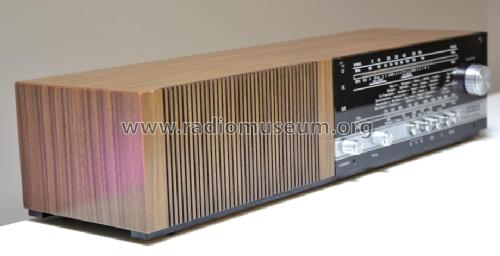

• Gehäuse mit Nussbaum-Dekor.
  Siehe auch 52420537 in Schleiflack altweiss.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
