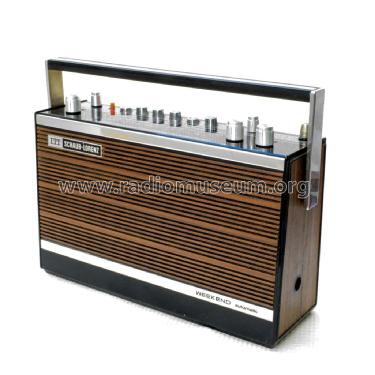

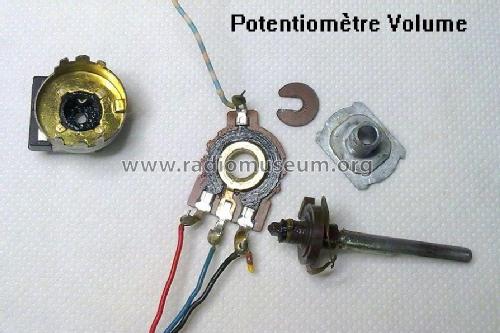

WEEKEND 100 automatic 52151001

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5916

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF125 AF136 AF137 AF138 BC252 BC172 AC178 AC179

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / D: 6 × 1.5 or 3R12: 2 × 4.5 / DC 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: WEEKEND 100 automatic 52151001 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 278 x 187 x 89 mm / 10.9 x 7.4 x 3.5 inch

• Notes

• Wellenbereiche/Wave ranges:
  LW 147 - 278 kHz
  MW 510 - 1605 kHz
  KW/SW 5,7 - 7,7 MHz
  UKW/FM 87,5 - 104 MHz.

  Anschluß für Plattenspieler, Tonband, Kopfhörer, Autoantenne möglich. Netzbetrieb mit einsetzbarem Netzteil NG3000.
  Ovallautsprecher 10,5 x 15,5 cm.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch RFP 1968/69 S.295

• Literature/Schematics (1)
• -- Original-techn. papers.
