• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1970–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28229

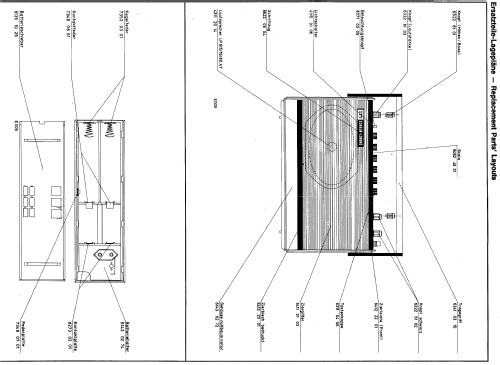

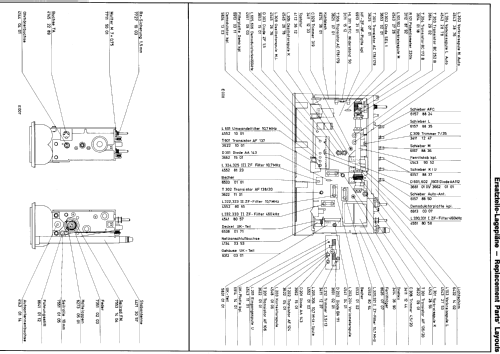

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6×1,5; 2×4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Weekend automatic 101 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 278 x 187 x 89 mm / 10.9 x 7.4 x 3.5 inch

• Notes
• Betrieb im Auto über Universalhalterung ohne Anschlüsse. Netzbetrieb mit zusätzlich einsetzbarem Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
