Weekend Stereo Cassette 220S

ITT Schaub-Lorenz

Data
Forum
Pictures
Collections

  • Year
  • 1984 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 356248

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 50-60Hz, 120; 230 / C: 6 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Weekend Stereo Cassette 220S - ITT Schaub-Lorenz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 400 x 180 x 85 mm / 15.7 x 7.1 x 3.3 inch
  • Notes

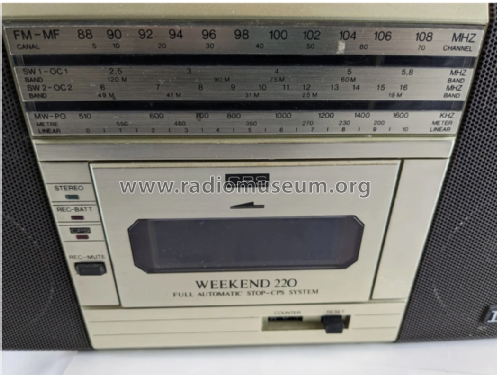

  • The difference from the ITT Weekend 220 model is the presence of a second range of short waves, from 2.5 MHz to 5.8 MHz, in place of the long waves. The sequence on the dial is different: at the top is FM, below SW1, below that SW2 and finally MW, while in the 220 model the sequence from the top is SW, FM, MW, LW. A minor difference is in the AC voltage range.

    FTZ-Nr. 11/513

  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
