Weltecho T 900
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1969 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 274058
aus Hauptkatalog 1969

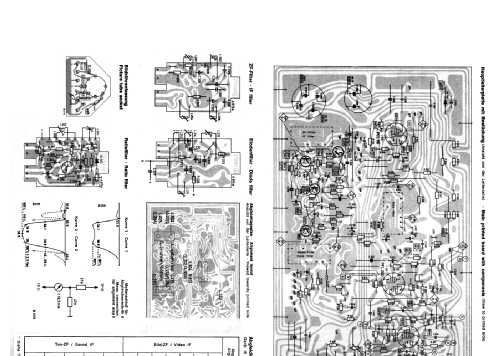

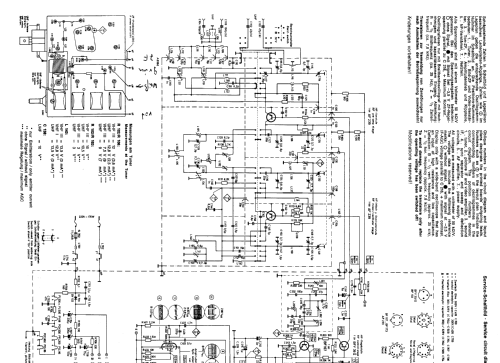

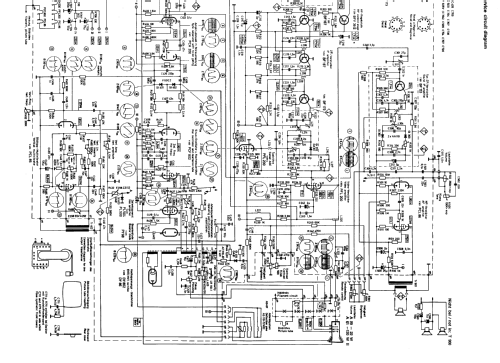

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Various materials
- from Radiomuseum.org
- Model: Weltecho T 900 - ITT Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 720 x 490 x 376 mm / 28.3 x 19.3 x 14.8 inch
- Notes
-
6 VHF/UHF Programm-Vorwahltasten, Anschlußmöglichkeit für Fernbedienung FB 400, durchgestreckte 59-cm-Rechteckbildröhre, Edelholzfuniert in Farben Nußbaum hell matt oder dunkel Hochglanz.
- Net weight (2.2 lb = 1 kg)
- 25.5 kg / 56 lb 2.7 oz (56.167 lb)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)

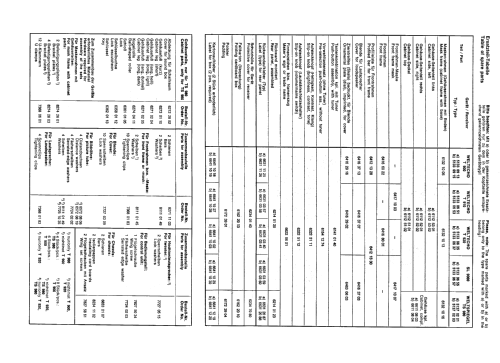

- -- Original-techn. papers.
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
