Weltspiegel TS 980
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1969 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 274061

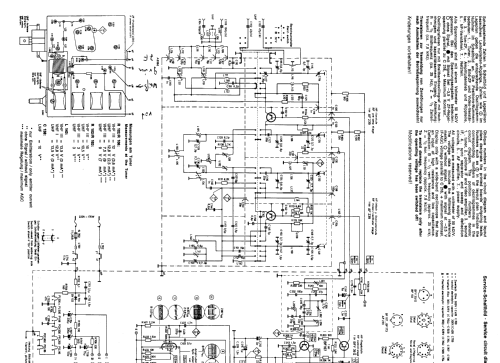

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: Weltspiegel TS 980 - ITT Schaub-Lorenz
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 820 x 920 x 420 mm / 32.3 x 36.2 x 16.5 inch
- Notes
-
6 VHF/UHF Programm-Vorwahltasten mit Regelschaltung,
Anschlußmöglichkeit für Fernbedienung FB 900, 61-cm-Rechteck-Bildröhre, Jalousietür auf Front, Leichtlauf Kugelrollen, ist als Tisch- und Standgerät verwendbar durch abnehmbare Beine, edelholzfuniert in Farbe Nußbaum hell matt oder dunkel Hochglanz.
- Net weight (2.2 lb = 1 kg)
- 42 kg / 92 lb 8.2 oz (92.511 lb)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
